Charging a dehumidifier with R-410A refrigerant requires proper tools, safety precautions, and precise technique. This guide walks you through the entire process—from diagnosing low refrigerant to completing the charge—ensuring your unit runs efficiently and safely.
Quick Answers to Common Questions
Tip/Question?
Can I charge R-410A with the dehumidifier running?
No. R-410A must be charged as a liquid with the system off. Charging while running can cause fractionation and compressor damage.
Tip/Question?
How do I know if my dehumidifier uses R-410A?
Check the nameplate on the unit or the user manual. It will list the refrigerant type and charge amount.
Tip/Question?
What if I overcharge the system?
Overcharging can cause high pressure, reduced efficiency, and compressor failure. Always charge by weight and monitor pressures.
Tip/Question?
Do I need a license to handle R-410A?
In many countries, yes. Check local regulations. Even if not required, proper training is essential.
Tip/Question?
Can I use R-22 instead of R-410A?
No. R-410A and R-22 are not interchangeable. Using the wrong refrigerant can destroy the compressor.
How to Charge a Dehumidifier with R-410A: A Complete Step-by-Step Guide
If your dehumidifier isn’t pulling moisture from the air like it used to, or if it’s running constantly without reducing humidity levels, low refrigerant could be the culprit. While many homeowners assume that adding refrigerant is a quick fix, charging a dehumidifier—especially with modern refrigerants like R-410A—requires knowledge, the right tools, and strict adherence to safety protocols.
In this comprehensive guide, you’ll learn how to charge a dehumidifier with R-410A safely and effectively. Whether you’re a DIY enthusiast with some HVAC experience or a technician looking for a refresher, this step-by-step walkthrough covers everything from diagnosing the problem to verifying a successful charge. We’ll also discuss common mistakes, troubleshooting tips, and essential safety practices to keep you and your equipment protected.
By the end of this guide, you’ll understand not just the mechanics of charging, but also why each step matters—so you can maintain your dehumidifier’s performance and longevity.
Understanding R-410A Refrigerant

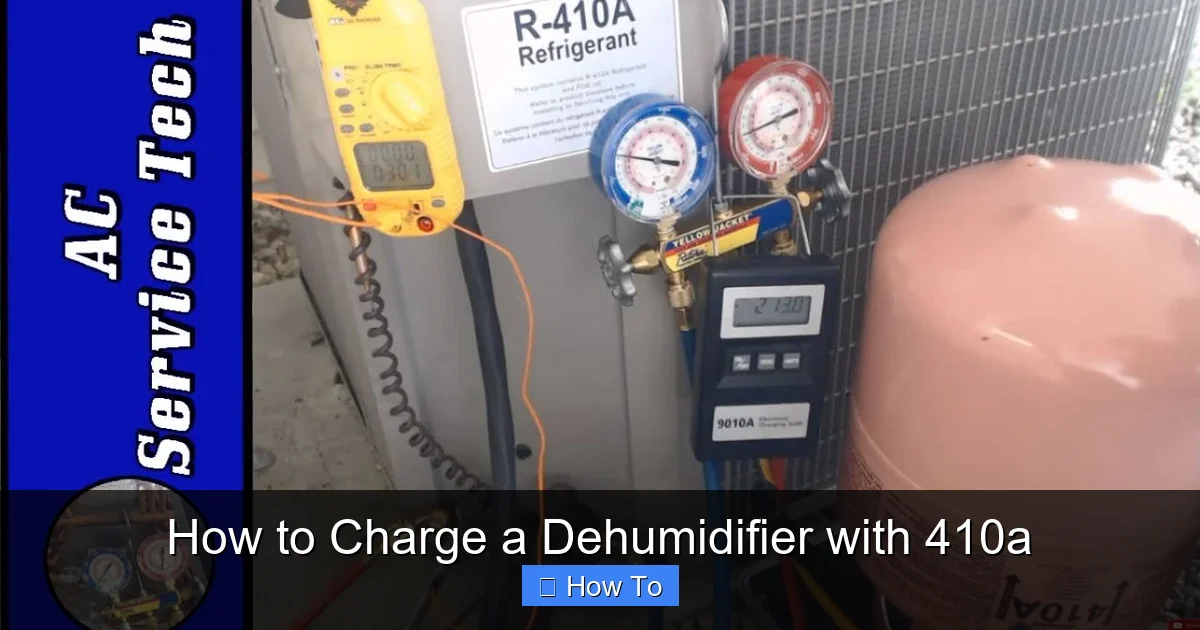

Visual guide about How to Charge a Dehumidifier with 410a
Image source: i.ytimg.com
Before diving into the charging process, it’s important to understand what R-410A is and why it’s used in modern dehumidifiers.
R-410A is a hydrofluorocarbon (HFC) blend made up of 50% R-32 and 50% R-125. It’s a high-pressure refrigerant that replaced older, ozone-depleting refrigerants like R-22. Because it doesn’t contain chlorine, R-410A doesn’t harm the ozone layer, making it more environmentally friendly.
However, R-410A operates at significantly higher pressures than older refrigerants—up to 50% higher than R-22. This means that systems designed for R-410A must be built with stronger components, and technicians must use compatible tools and procedures.
One critical point: R-410A must always be charged as a liquid when the system is off. Unlike older refrigerants, it cannot be safely charged as a vapor without risking fractionation—the separation of its components, which alters its performance and can damage the compressor.
Always confirm that your dehumidifier is designed for R-410A. Check the nameplate on the unit or the user manual. Never mix refrigerants or use R-410A in a system designed for R-22 or other types.
Tools and Equipment You’ll Need
Charging a dehumidifier isn’t a job you can do with basic tools. You’ll need specialized HVAC equipment to do it safely and accurately. Here’s what you should have on hand:
- Manifold gauge set (R-410A compatible): This allows you to monitor high and low-side pressures. Make sure it’s rated for R-410A’s high pressures.
- Digital refrigerant scale: Essential for weighing the exact amount of refrigerant being added. Eyeballing it won’t cut it.
- Vacuum pump: Used to evacuate the system and remove moisture and air before charging.
- Refrigerant recovery machine (optional but recommended): If you need to remove existing refrigerant, a recovery unit ensures it’s captured safely and legally.
- R-410A refrigerant cylinder: Must be labeled and stored upright. Never use a damaged or expired cylinder.
- Safety gear: Safety glasses, gloves, and long sleeves are a must. R-410A can cause frostbite on contact with skin.
- Leak detection kit: Electronic leak detector or soap solution to check for leaks before and after charging.
- Temperature probe or infrared thermometer: Helps measure suction line temperature for superheat calculations.
- Service valve wrench: For opening and closing Schrader valves safely.
Having the right tools not only makes the job easier but also ensures accuracy and compliance with environmental regulations.
Step 1: Diagnose the Problem
Before you even think about adding refrigerant, you need to confirm that low charge is actually the issue. Many symptoms of low refrigerant can also be caused by other problems.
Common Signs of Low Refrigerant
- Dehumidifier runs constantly but doesn’t reduce humidity
- Ice buildup on the evaporator coils
- Weak or no cooling from the air outlet
- Hissing or bubbling sounds (possible leak)
- High suction pressure and low discharge pressure
Rule Out Other Causes
- Dirty air filter: A clogged filter restricts airflow, reducing dehumidification efficiency. Replace or clean it.
- Frozen coils: If the evaporator is iced over, it may be due to low airflow or low refrigerant. Defrost the unit and investigate.
- Faulty humidistat: The control may not be sensing humidity correctly. Test or replace it.
- Blocked drain line: If water isn’t draining, the unit may shut off prematurely.
- Compressor issues: A failing compressor can mimic low refrigerant symptoms.
Only after ruling out these issues should you proceed with refrigerant charging. Charging a system with a leak without fixing it is a waste of time and refrigerant—and it’s illegal in many areas due to environmental regulations.
Step 2: Locate the Service Ports
Most dehumidifiers have two service ports: one on the suction (low-pressure) side and one on the discharge (high-pressure) side. These are typically Schrader valves, similar to those on car tires, but smaller.
Finding the Ports
- Remove the access panel on the back or side of the unit.
- Look for small copper lines with threaded caps. These are usually near the compressor.
- The suction line (larger diameter) connects to the evaporator; the discharge line (smaller) connects to the condenser.
- Service ports are often labeled “LP” (low pressure) and “HP” (high pressure).
If your dehumidifier doesn’t have service ports, you may need to install them. This requires brazing and should only be done by a qualified technician.
Step 3: Recover Existing Refrigerant (If Necessary)
If the system has lost refrigerant due to a leak, you must recover any remaining refrigerant before repairing the leak and recharging. This is required by law in most countries to prevent emissions.
How to Recover Refrigerant
- Connect the recovery machine to the high and low-side service ports using hoses.
- Open the valves and start the recovery machine. It will pull the refrigerant into a recovery cylinder.
- Monitor the pressure gauges until both sides read zero or near zero.
- Close the valves and disconnect the hoses.
Never vent refrigerant to the atmosphere. Always use certified recovery equipment.
Step 4: Repair Any Leaks
Before charging, you must fix the source of the refrigerant loss. Common leak points include:
- Schrader valve cores
- Flare fittings
- Evaporator or condenser coils
- Compressor seals
Use an electronic leak detector or a soap solution (mix dish soap with water and apply to joints). Bubbles indicate a leak.
For small leaks, you may be able to replace O-rings or tighten fittings. For larger leaks, especially in coils, brazing or coil replacement may be necessary.
Step 5: Evacuate the System
After repairing leaks, you must remove all air and moisture from the system. Air and moisture can cause corrosion, reduce efficiency, and lead to compressor failure.
How to Pull a Vacuum
- Connect the vacuum pump to the manifold gauge set.
- Attach the hoses to the high and low-side service ports.
- Open both valves on the manifold and start the vacuum pump.
- Let the pump run for at least 30–60 minutes. For larger systems or high humidity, go longer.
- Use a micron gauge to measure vacuum level. Aim for 500 microns or lower.
- Close the valves and let the system sit for 15 minutes. If the micron level rises, there’s still a leak.
- If the vacuum holds, you’re ready to charge.
A proper vacuum ensures the system is dry and leak-free.
Step 6: Weigh the Refrigerant Cylinder
R-410A must be charged by weight, not by pressure. The correct charge amount is listed on the dehumidifier’s nameplate—usually in ounces or pounds.
Steps to Weigh the Cylinder
- Place the R-410A cylinder on the digital scale.
- Zero the scale (tare) to account for the cylinder weight.
- Record the initial weight.
- As you charge, monitor the scale to ensure you add the exact amount specified.
Never guess the charge. Overcharging or undercharging can damage the compressor or reduce efficiency.
Step 7: Charge the Dehumidifier with R-410A
Now it’s time to add the refrigerant. Remember: R-410A must be charged as a liquid with the system off.
Charging Procedure
- Ensure the dehumidifier is powered off and unplugged.
- Connect the charging hose from the manifold gauge set to the low-side service port.
- Connect the other end to the R-410A cylinder via the scale.
- Open the valve on the refrigerant cylinder slowly.
- Open the low-side valve on the manifold gauge set.
- Allow the refrigerant to flow into the system as a liquid. You may hear a gurgling sound.
- Monitor the scale until the correct charge weight is reached.
- Close the cylinder valve and the manifold valve.
- Disconnect the hoses.
Never charge R-410A as a vapor into the low side with the system running. This can cause fractionation and compressor damage.
Step 8: Restart and Test the System
After charging, it’s time to see if everything works.
Startup Procedure
- Reinstall the access panel.
- Plug in the dehumidifier and turn it on.
- Let it run for 15–30 minutes.
- Check the suction and discharge pressures using the manifold gauges.
- Measure the temperature of the suction line near the compressor.
- Calculate superheat: Suction line temperature minus evaporator saturation temperature (from pressure chart).
For most dehumidifiers, target superheat is between 10°F and 15°F. If it’s too high, the charge may be low. If too low, it may be overcharged.
Also check for:
- Proper humidity reduction
- No ice on coils
- Normal operating sounds
- Adequate airflow
Troubleshooting Common Issues
Even with careful charging, problems can arise. Here’s how to handle them:
Unit Still Not Dehumidifying
- Check for airflow issues (dirty filter, blocked vents).
- Verify the humidistat is working.
- Recheck superheat and subcooling.
- Ensure the compressor is running and drawing proper amps.
Ice on Evaporator Coils
- Low airflow (clean filter, check fan).
- Low refrigerant (recheck charge).
- Faulty defrost control (if equipped).
High Pressure Readings
- Dirty condenser coils.
- Restricted airflow.
- Overcharged system.
- Non-condensable gases (re-evacuate).
Refrigerant Leak After Charging
- Recheck all connections.
- Use leak detector to find the source.
- Repair and re-evacuate before recharging.
Safety and Environmental Considerations
Working with refrigerants comes with serious responsibilities.
- Never release R-410A into the atmosphere. It’s a greenhouse gas with high global warming potential.
- Use only certified recovery equipment.
- Wear safety gear at all times. Refrigerant can cause frostbite or eye damage.
- Store cylinders upright and away from heat.
- Dispose of old refrigerant properly. Take it to a certified reclaimer.
In many regions, only licensed HVAC technicians can legally handle refrigerants. Check your local regulations before proceeding.
Conclusion
Charging a dehumidifier with R-410A is a precise process that demands attention to detail, the right tools, and a commitment to safety. While it’s possible for experienced DIYers to tackle this job, it’s not for beginners. Mistakes can lead to equipment damage, personal injury, or environmental harm.
By following this guide—diagnosing the issue, repairing leaks, evacuating the system, and charging by weight—you can restore your dehumidifier’s performance and extend its lifespan. Always prioritize safety, use proper equipment, and consult a professional if you’re unsure at any step.
Remember: a well-maintained dehumidifier not only improves indoor air quality but also protects your home from mold, mildew, and structural damage. Take the time to do it right, and your efforts will pay off in comfort and peace of mind.
