How to Attach Pump to Friedrich Dehumidifier Model Year-1

Attaching a pump to your Friedrich dehumidifier Model Year-1 allows for continuous drainage without manual emptying. This guide walks you through the entire process, from checking compatibility to testing the system, ensuring hassle-free moisture control.

Quick Answers to Common Questions

Tip/Question?

Can I use any pump with my Friedrich dehumidifier?

No—only pumps designed for dehumidifiers with compatible hose sizes and sufficient lift capacity should be used. Check your model’s specifications before purchasing.

Tip/Question?

How often should I clean the pump?

Clean the pump and filter at least once a month, or more often in high-humidity environments, to prevent clogs and ensure smooth operation.

Tip/Question?

What if my pump doesn’t turn on automatically?

Check the float switch—it may be stuck or obstructed. Gently lift it to test if the pump activates. Also, ensure the pump is plugged in and receiving power.

Tip/Question?

Can I run the hose outside?

Yes, but ensure the hose is protected from UV rays and extreme temperatures. Use UV-resistant tubing and avoid direct sunlight exposure.

Tip/Question?

Is it safe to leave the pump running 24/7?

Yes, as long as the pump has an automatic float switch and is properly maintained. Most dehumidifier pumps are designed for continuous use.

How to Attach Pump to Friedrich Dehumidifier Model Year-1

If you’re tired of constantly emptying the water bucket from your Friedrich dehumidifier Model Year-1, attaching an external pump is a smart, long-term solution. Whether you’re dealing with high humidity in a basement, crawl space, or laundry room, a pump enables continuous drainage—so you can set it and forget it. This comprehensive guide will walk you through every step of attaching a pump to your Friedrich dehumidifier Model Year-1, ensuring a safe, effective, and leak-free setup.

By the end of this guide, you’ll know exactly how to choose the right pump, prepare your dehumidifier, install the hose and pump, and test the system for reliable performance. We’ll also cover troubleshooting tips and maintenance advice to keep your setup running smoothly for years. Let’s get started!

Why Attach a Pump to Your Friedrich Dehumidifier?

Before diving into the installation, it’s helpful to understand why adding a pump is such a valuable upgrade. The Friedrich Model Year-1 is a reliable dehumidifier, but like most units, it comes with a built-in water collection bucket. Once this bucket fills up—usually after 12 to 24 hours, depending on humidity levels—the unit automatically shuts off to prevent overflow. This means you have to manually empty it, which can be inconvenient, especially if the dehumidifier is in a hard-to-reach area like a basement or attic.

An external pump solves this problem by automatically removing collected water and sending it to a drain, sink, or sump pit. This allows your dehumidifier to run continuously without interruption. It’s especially useful in high-moisture environments or during humid seasons when the unit works harder.

Additionally, continuous drainage reduces the risk of mold or mildew growth inside the unit, extends the life of the dehumidifier, and improves overall efficiency. With a pump, you gain peace of mind knowing your space stays dry even when you’re not around to monitor the machine.

What You’ll Need

Before beginning the installation, gather all the necessary tools and materials. Having everything ready will make the process smoother and faster.

• Compatible condensate pump: Look for a pump specifically designed for dehumidifiers. Popular brands include Little Giant, EcoSeb, and VIVOSUN. Ensure it has a minimum lift capacity of 10–15 feet and a flow rate of at least 50–100 GPH (gallons per hour).
• Vinyl or reinforced drainage hose: Use a 5/16″ or 3/8″ inner diameter hose. The length depends on your setup—measure the distance from the dehumidifier to the drain point.
• Hose clamps (2–4): These secure the hose to the pump and dehumidifier outlet to prevent leaks.
• Scissors or utility knife: For cutting the hose to the correct length.
• Screwdriver (if needed): Some pumps or brackets may require minor assembly.
• Towel or bucket: To catch any residual water during installation.
• Electrical outlet nearby: The pump will need power, so ensure there’s a GFCI-protected outlet within reach.

Optional but helpful:

• Zip ties or mounting brackets (to secure the hose and pump)
• Silicone sealant (for extra leak protection)
• Measuring tape

Step 1: Confirm Pump Compatibility

Not all pumps are created equal, and using an incompatible model can lead to poor performance or damage. The Friedrich Model Year-1 has a built-in drain hose connection, typically located at the back or side of the unit. This port is designed to accept a small-diameter hose, usually around 5/16″ to 3/8″.

Before purchasing a pump, check the following:

• Hose connection size: Measure the outer diameter of the drain port on your dehumidifier. Most Friedrich models use a 5/16″ outlet.
• Pump inlet size: Ensure the pump’s inlet matches your hose size. Most dehumidifier pumps accept 3/8″ hoses, but adapters are often included.
• Lift capacity: If you plan to pump water upward (e.g., from a basement to a sink), choose a pump with sufficient vertical lift. A 10–15 foot lift is standard for most home applications.
• Automatic shut-off: Look for a pump with a float switch that turns it on when water is detected and off when the reservoir is empty. This prevents dry running and extends pump life.

Pro tip: Check the Friedrich user manual or contact customer support to confirm the exact drain port specifications for your Model Year-1. This ensures you buy the right accessories the first time.

Step 2: Turn Off and Unplug the Dehumidifier

Safety first! Before handling any part of your dehumidifier, always turn it off and unplug it from the electrical outlet. This prevents accidental startup and reduces the risk of electric shock.

Steps to Safely Power Down

• Press the power button to turn off the unit.
• Wait 30 seconds to ensure all internal components have stopped.
• Unplug the power cord from the wall outlet.
• If the unit has been running recently, allow it to cool for 10–15 minutes before proceeding.

Never attempt to install a pump while the dehumidifier is plugged in or running. Even if the pump installation seems simple, water and electricity are a dangerous combination.

Step 3: Locate the Drain Hose Port

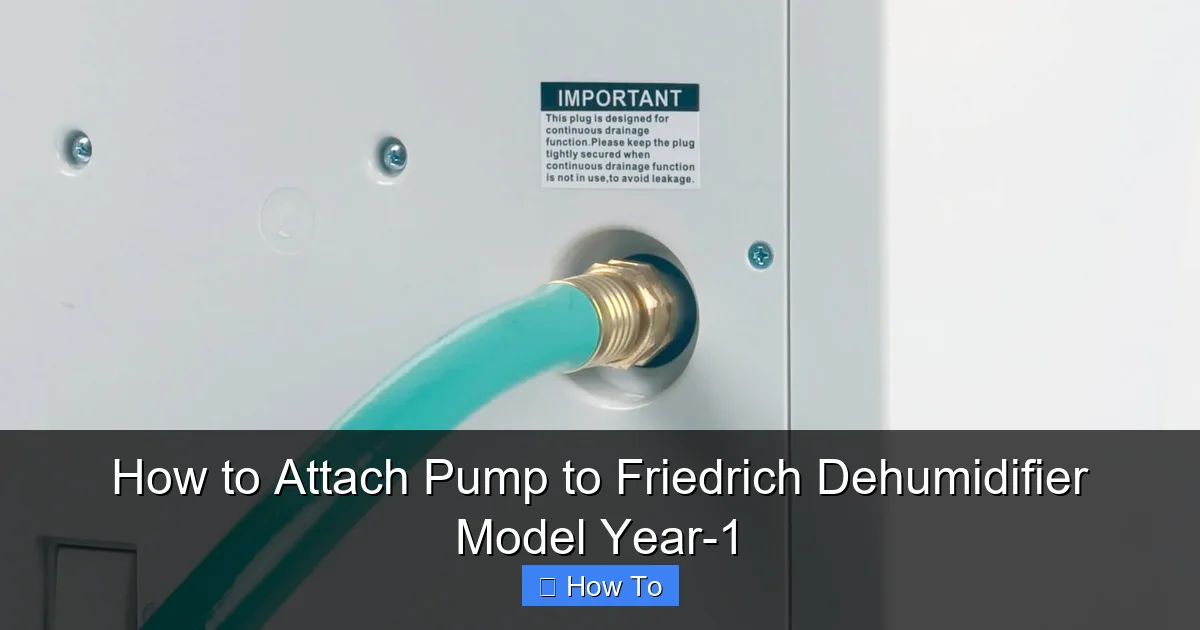

The Friedrich Model Year-1 features a built-in drain hose connection, usually found on the back or lower side of the unit. This port allows you to attach a hose for continuous drainage.

How to Find the Drain Port

• Look for a small, round plastic nozzle labeled “Drain” or “Continuous Drain.”
• It’s typically located near the bottom of the unit, close to where the water bucket sits.
• The port may have a removable cap or plug—remove it carefully to avoid breaking it.

If you can’t find the port, consult your user manual. Some models require you to remove a small cover or panel to access the drain outlet.

Prepare the Port

Once located, inspect the port for any debris or residue. Wipe it clean with a dry cloth. If there’s old water or mineral buildup, use a damp cloth to gently clean it. Avoid using harsh chemicals that could damage the plastic.

Step 4: Cut and Attach the Drainage Hose

Now it’s time to connect the hose between the dehumidifier and the pump.

Measure and Cut the Hose

• Measure the distance from the dehumidifier’s drain port to the pump’s inlet.
• Add an extra 6–12 inches for flexibility and to prevent kinking.
• Use scissors or a utility knife to cut the hose cleanly. A straight, clean cut ensures a tight seal.

Attach the Hose to the Dehumidifier

• Slide one end of the hose onto the drain port.
• Push it on firmly until it’s snug. You should feel it seat securely.
• Secure it with a hose clamp. Tighten the clamp with a screwdriver until it’s firm but not over-tightened (this can crack the plastic).

Attach the Hose to the Pump

• Take the other end of the hose and connect it to the pump’s inlet.
• Most pumps have a barbed fitting—push the hose on until it’s fully seated.
• Secure with a second hose clamp.

Pro tip: If the hose feels loose, use a small piece of silicone sealant around the connection for extra security. Let it dry before testing.

Step 5: Position the Pump Correctly

Where you place the pump matters. It needs to be on a stable, level surface and positioned so that water flows into it, not away from it.

Ideal Pump Placement

• Place the pump on a flat, waterproof surface near the dehumidifier.
• Ensure the pump’s inlet is lower than the dehumidifier’s drain port to allow gravity-assisted flow.
• If pumping uphill, make sure the pump is rated for the required vertical lift.
• Keep the pump away from foot traffic to avoid accidental kicks or spills.

Secure the Pump

Use mounting brackets, adhesive pads, or zip ties to secure the pump in place. This prevents it from tipping over during operation.

Route the Hose Safely

• Avoid sharp bends or kinks in the hose—these can restrict water flow.
• Use zip ties or clips to secure the hose along walls or baseboards.
• Ensure the hose doesn’t rest in standing water, which can lead to backflow or contamination.

Step 6: Connect the Pump to Power

Most condensate pumps require a standard 120V electrical outlet.

Power Requirements

• Plug the pump into a GFCI (Ground Fault Circuit Interrupter) outlet for safety.
• If using an extension cord, choose a heavy-duty, outdoor-rated cord with a grounding pin.
• Never daisy-chain multiple devices on the same outlet unless the circuit can handle the load.

Test the Electrical Connection

Before turning everything on, double-check that:

• The pump is plugged in securely.
• The outlet is working (test with another device if unsure).
• No wires are frayed or exposed.

Step 7: Test the System

Now it’s time to see if everything works.

Initial Test Run

• Plug the dehumidifier back into the outlet.
• Turn it on and set it to your desired humidity level.
• Wait 10–15 minutes for the unit to collect water.
• Listen for the pump to activate—you should hear a gentle humming sound.
• Check the hose and connections for leaks.
• Verify that water is flowing into the drain or sink.

Troubleshooting During Testing

• No water flow: Check for kinks in the hose, clogged pump inlet, or incorrect pump placement.
• Pump doesn’t turn on: Ensure the float switch is free to move and the pump is plugged in.
• Leaks at connections: Tighten hose clamps or reapply sealant.
• Gurgling sounds: This may indicate air in the line—run the pump for a few more minutes to clear it.

If the system works correctly, congratulations! You’ve successfully attached a pump to your Friedrich dehumidifier.

Step 8: Final Adjustments and Placement

Once the system is working, make final adjustments for optimal performance.

Secure All Components

• Use zip ties or clips to neatly route the hose.
• Ensure the pump and dehumidifier are stable and won’t be disturbed.
• Label the pump and hose for future maintenance.

Set Up a Backup Plan

Even with a pump, it’s wise to have a backup. Consider:

• Placing a shallow pan under the pump to catch any unexpected leaks.
• Using a pump with an overflow alarm or secondary float switch.
• Checking the system weekly for the first month.

Troubleshooting Common Issues

Even with careful installation, problems can arise. Here’s how to fix the most common issues.

Pump Runs but No Water Flows

• Check for clogs in the hose or pump inlet.
• Ensure the hose isn’t kinked or blocked.
• Verify the pump is submerged or receiving water.

Pump Doesn’t Turn On

• Test the outlet with another device.
• Check the float switch—gently lift it to see if the pump activates.
• Inspect the power cord for damage.

Water Leaks from Connections

• Tighten hose clamps.
• Reapply silicone sealant if needed.
• Replace the hose if it’s cracked or worn.

Pump Makes Loud Noises

• This could indicate air in the system—run it longer to purge air.
• Check for loose parts or vibrations—secure the pump better.

Pump Overflows or Shuts Off Frequently

• The drain line may be too long or have too many bends.
• The pump may be undersized for your dehumidifier’s output.
• Clean the pump filter and inlet regularly.

Maintenance Tips for Long-Term Performance

To keep your pump and dehumidifier working efficiently, follow these maintenance steps:

• Clean the pump monthly: Remove the cover and rinse the reservoir and filter with clean water.
• Inspect the hose quarterly: Look for cracks, kinks, or mineral buildup.
• Check connections: Ensure hose clamps are tight and seals are intact.
• Test the float switch: Lift it manually to confirm the pump turns on and off.
• Replace the pump every 3–5 years: Even high-quality pumps wear out over time.

Regular maintenance prevents clogs, leaks, and unexpected failures—especially during peak humidity seasons.

Conclusion

Attaching a pump to your Friedrich dehumidifier Model Year-1 is a straightforward process that can save you time, effort, and potential water damage. By following this guide, you’ve learned how to choose the right pump, safely install the hose, position the components correctly, and test the system for reliable performance.

With continuous drainage, your dehumidifier can run nonstop, keeping your home dry and comfortable—even when you’re not around to empty the bucket. Plus, proper installation and maintenance will extend the life of both your dehumidifier and pump.

Remember: safety comes first. Always unplug the unit before working on it, and double-check all connections to prevent leaks. If you encounter any issues, refer to the troubleshooting section or consult the manufacturer’s support team.

Now that your pump is installed, enjoy the peace of mind that comes with a dry, healthy home. Say goodbye to constant bucket emptying and hello to hassle-free humidity control.
