How to Build a Large Dehumidifier
High humidity can cause mold, musty odors, and damage to furniture, electronics, and even your home’s structure. While commercial dehumidifiers are effective, they can be expensive—especially large-capacity models for basements, garages, or workshops. The good news? You can build a large dehumidifier yourself using off-the-shelf parts, basic tools, and a little know-how.
In this guide, you’ll learn how to construct a powerful, custom dehumidifier capable of handling spaces up to 2,000 square feet. Whether you’re dealing with a damp basement, a humid workshop, or a storage area, this DIY solution gives you control over size, power, and cost. We’ll cover everything from understanding how dehumidifiers work to selecting components, assembling the unit, and troubleshooting common issues.
Understanding How Dehumidifiers Work
Before diving into construction, it helps to understand the basic principles behind dehumidification. Most residential dehumidifiers use a refrigeration cycle to remove moisture from the air. Here’s a simplified breakdown:

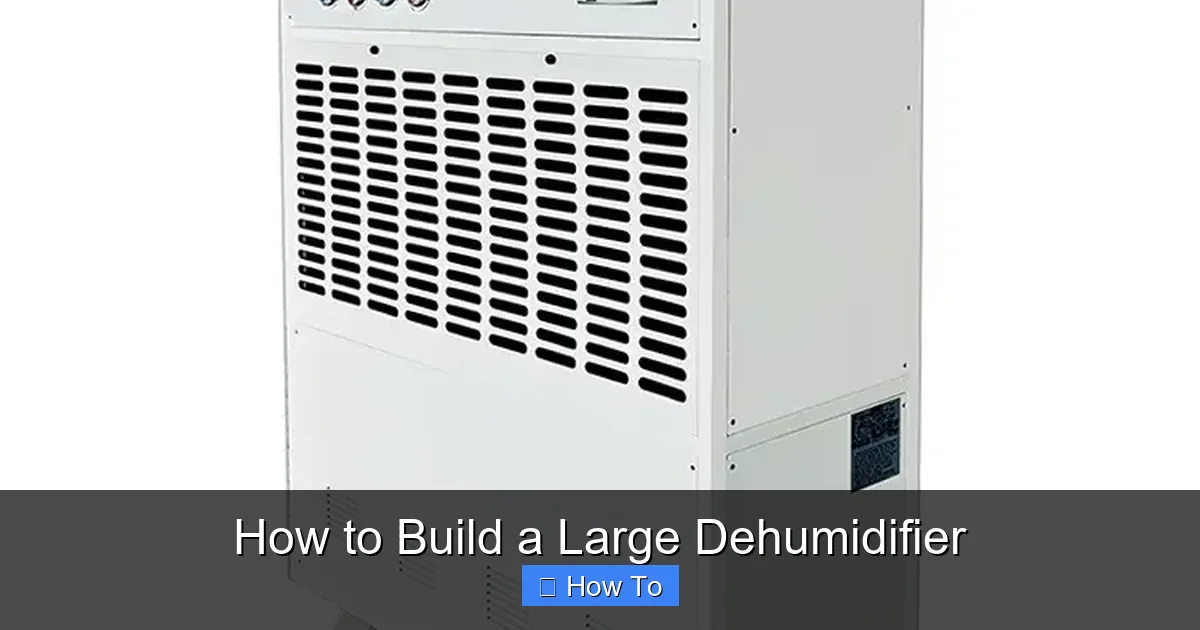

Visual guide about How to Build a Large Dehumidifier
Image source: cdn.globalso.com
- Warm, humid air is drawn into the unit by a fan.
- The air passes over cold evaporator coils, causing moisture to condense into water droplets.
- The collected water drips into a reservoir or drains out through a hose.
- The now-drier air passes over warm condenser coils, reheats, and is released back into the room.
This process repeats continuously, lowering the relative humidity over time. The key components enabling this cycle are the compressor, condenser coils, evaporator coils, expansion valve, fan, and refrigerant. By replicating this system on a larger scale, you can build a dehumidifier that outperforms many store-bought models.
Gathering Materials and Tools
Building a large dehumidifier requires careful planning and the right parts. Below is a list of essential components and tools you’ll need. Most can be sourced from hardware stores, HVAC suppliers, or online retailers like Amazon, eBay, or specialty refrigeration shops.
Essential Components
- Refrigeration Compressor: A 1/3 to 1/2 HP reciprocating or rotary compressor (e.g., from an old refrigerator or window AC unit). Look for one rated for R-134a or R-410A refrigerant.
- Evaporator and Condenser Coils: Copper or aluminum coils with fins for heat exchange. You can salvage these from old air conditioners or purchase pre-made coil kits.
- Expansion Valve: A thermostatic expansion valve (TXV) or capillary tube to regulate refrigerant flow.
- Fan: A high-CFM (cubic feet per minute) axial or centrifugal fan (at least 200–400 CFM) to move air through the system.
- Refrigerant: R-134a or R-410A (check local regulations—some refrigerants require certification to handle).
- Water Collection Tray and Drain Hose: A shallow pan under the evaporator coil and a 1/2-inch or 3/4-inch vinyl hose for drainage.
- Hygrometer: To monitor humidity levels and test performance.
- Electrical Components: Power cord, switch, relay, and wiring (120V AC).
- Insulation: Foam board or rubber insulation to wrap refrigerant lines and reduce noise.
- Enclosure: A sturdy plastic or metal box (e.g., a large storage bin or custom-built cabinet) to house all components.
Tools Needed
- Pipe cutter or hacksaw
- Flaring tool and tubing bender
- Soldering torch and solder (for copper joints)
- Multimeter
- Drill and drill bits
- Wire strippers and crimpers
- Screwdrivers and wrenches
- Safety gear: gloves, goggles, and mask
Step-by-Step Assembly Guide
Step 1: Design Your Layout
Before assembling, sketch a layout of your dehumidifier. Place the evaporator coil at the air intake side, the condenser coil at the exhaust side, and the compressor near the bottom for stability. The fan should pull air through the evaporator first, then push it over the condenser. Ensure there’s enough space for airflow and easy access to the water tray.
Tip: Use a large plastic storage bin (30–50 gallons) as your enclosure. Drill holes for airflow, wiring, and drainage. Label each section to avoid confusion during assembly.
Step 2: Install the Evaporator and Condenser Coils
Mount the evaporator coil on the intake side of the enclosure. Secure it with brackets or zip ties, ensuring it’s level so water drains properly. Place the condenser coil on the opposite side, aligned with the fan’s exhaust path.
Connect the coils to the compressor using copper tubing. Use a pipe cutter to trim tubes to length, then flare the ends and connect them with flare nuts. Solder joints for a leak-proof seal. Insulate the suction line (the tube going to the evaporator) to prevent condensation and improve efficiency.
Step 3: Install the Expansion Valve
The expansion valve controls refrigerant flow into the evaporator. Install it between the condenser outlet and the evaporator inlet. Follow the manufacturer’s instructions for orientation—most TXVs must be mounted horizontally with the sensing bulb attached to the suction line near the evaporator outlet.
Secure the sensing bulb with a hose clamp and wrap it with insulation to ensure accurate temperature readings.
Step 4: Mount the Compressor
Place the compressor on a vibration-dampening pad inside the enclosure to reduce noise. Connect the discharge line (high-pressure) to the condenser inlet and the suction line (low-pressure) to the evaporator outlet. Double-check all connections for tightness.
Warning: Compressors generate heat and vibration. Ensure adequate ventilation around the unit and avoid placing flammable materials nearby.
Step 5: Install the Fan
Mount the fan so it pulls air through the evaporator coil and pushes it over the condenser. Use screws or brackets to secure it to the enclosure wall. Position the fan to create a straight airflow path—avoid sharp bends or obstructions.
Tip: A 12-inch axial fan with 300+ CFM is ideal for large units. For quieter operation, consider a centrifugal fan.
Step 6: Set Up the Drainage System
Place a shallow collection tray under the evaporator coil. Drill a hole in the side of the enclosure and insert a drain hose. Use a barbed fitting and seal it with silicone to prevent leaks. Route the hose to a floor drain, bucket, or sump pump.
For automatic operation, install a float switch in the tray that shuts off the unit when the water level is high. Alternatively, use a condensate pump for elevated drainage.
Step 7: Wire the Electrical System
Connect the compressor and fan to a power source using a relay or contactor to handle the compressor’s high startup current. Wire a switch to control power and include a fuse or circuit breaker for safety.
Use 14-gauge or 12-gauge wire for 120V circuits. Connect the ground wire to the metal parts of the compressor and enclosure. Test all connections with a multimeter before powering on.
Safety Note: Always disconnect power when working on electrical components. If you’re not experienced with wiring, consult an electrician.
Step 8: Charge the Refrigeration System
Evacuate the system using a vacuum pump to remove air and moisture. Connect the pump to the service port and run it for at least 30 minutes. Then, charge the system with the correct amount of refrigerant (check the compressor label for specs).
Use a refrigerant scale for accuracy. Overcharging or undercharging reduces efficiency and can damage the compressor.
Step 9: Seal and Insulate the Enclosure
Close the enclosure and seal any gaps with weatherstripping or silicone caulk to prevent air leaks. Wrap refrigerant lines with foam insulation to improve performance and reduce sweating.
Add ventilation holes near the compressor and fan to prevent overheating. Cover holes with mesh to keep out dust and debris.
Testing and Calibration
Once assembled, it’s time to test your dehumidifier. Place it in a humid area (like a basement) and turn it on. Use a hygrometer to monitor humidity levels before and after operation.
Check for:
- Condensation forming on the evaporator coil
- Water collecting in the tray
- Warm air exiting the condenser side
- Stable compressor operation (no unusual noises or vibrations)
If the unit isn’t removing moisture, check for refrigerant leaks, blocked airflow, or incorrect fan direction. Adjust fan speed or thermostat settings as needed.
Troubleshooting Common Issues
No Cooling or Moisture Removal
Possible causes: low refrigerant, clogged coils, or faulty compressor. Check refrigerant levels and clean coils with a soft brush. Listen for compressor hum—if it’s not running, test the relay and capacitor.
Water Leaking from the Unit
Ensure the drain hose is unobstructed and properly sloped. Check the collection tray for cracks or misalignment. Seal all connections with silicone.
Excessive Noise or Vibration
Secure the compressor with rubber mounts. Tighten all bolts and ensure the fan is balanced. Add sound-dampening material inside the enclosure.
Unit Overheats
Improve ventilation around the compressor and condenser. Clean dust from coils and fan blades. Reduce runtime if the ambient temperature is too high.
Optimizing Performance
To get the most out of your DIY dehumidifier:
- Place it in the center of the room for even airflow.
- Close windows and doors to prevent humid air from entering.
- Run it during the most humid times of day (early morning or after rain).
- Clean coils and replace filters every 3–6 months.
- Use a programmable timer to automate operation.
For extra efficiency, consider adding a thermostat and humidistat to automatically turn the unit on and off based on temperature and humidity levels.
Safety and Legal Considerations
Working with refrigerants and electricity carries risks. Always wear safety gear and work in a well-ventilated area. In many regions, handling refrigerants requires EPA certification—check local laws before purchasing or installing refrigerant.
Dispose of old refrigerants properly. Never release them into the atmosphere. If you’re unsure about any step, consult a licensed HVAC technician.
Conclusion
Building a large dehumidifier is a rewarding project that combines practical engineering with real-world benefits. With the right parts, tools, and attention to detail, you can create a powerful, cost-effective solution for controlling humidity in large spaces.
This DIY unit not only saves money compared to commercial models but also allows customization for your specific needs. Whether you’re protecting a basement, preserving tools in a garage, or maintaining ideal conditions in a workshop, your homemade dehumidifier can deliver reliable performance for years.
Remember: safety, precision, and testing are key. Take your time, follow the steps carefully, and don’t hesitate to seek help when needed. With this guide, you’re well on your way to breathing easier and living in a healthier, drier environment.
